Creality K1 Max: Ultra-fast desktop machine with
smart AI functionality
The Creality K1 Max is a desktop FDM 3D printer
aimed at high-speed production with increased stability and reliability in
mind. Despite its compact size, the device boasts a large build volume, high
precision and consistency of printing, unprecedented build speed, durable
structure, smart AI functions, and time-effective manufacturing capabilities.
All these features lead to boosted performance alongside reduced expenses.

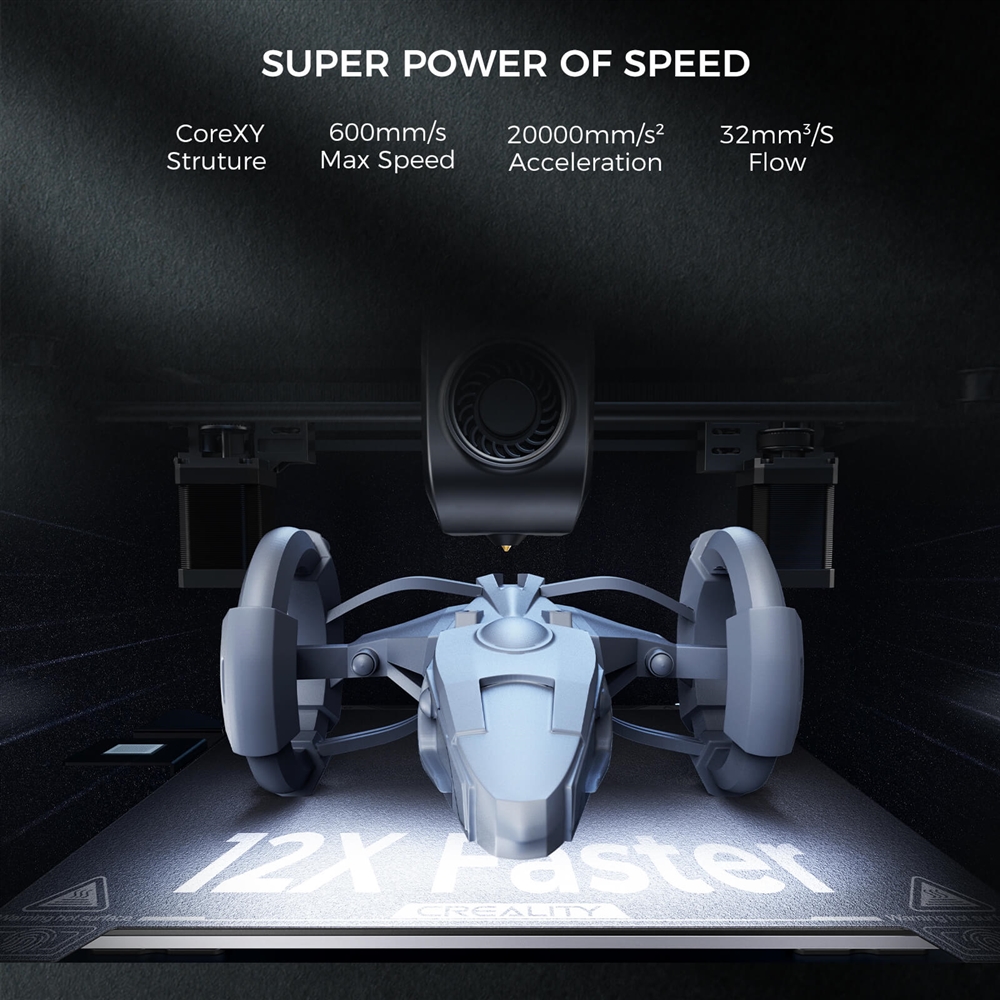

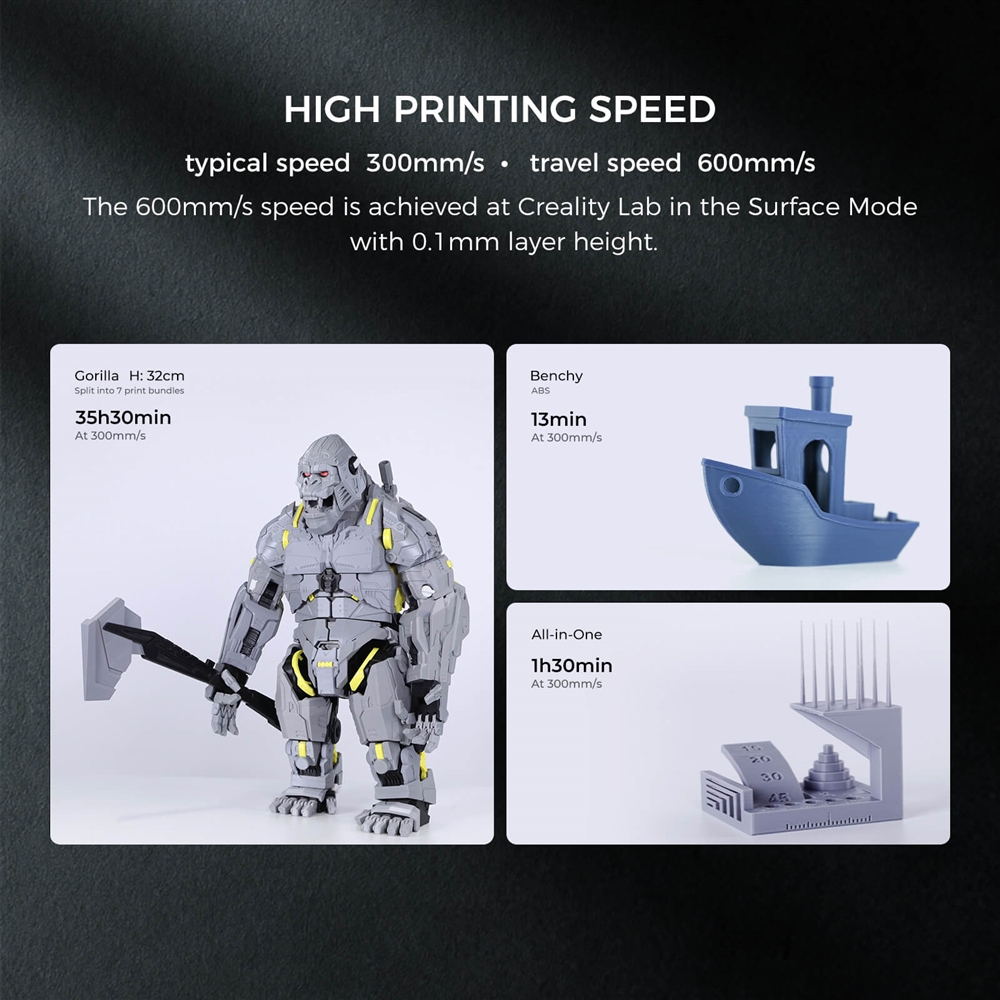

12X FASTER, DEFY LIMITATIONS - K1 Max:
600mm/s
K1 Max reaches 600mm/s in only 0.03s based on
20000mm/s^2 acceleration. It can be as productive as several 3D printers
together.
NIMBLE SETUP FOR SPEED

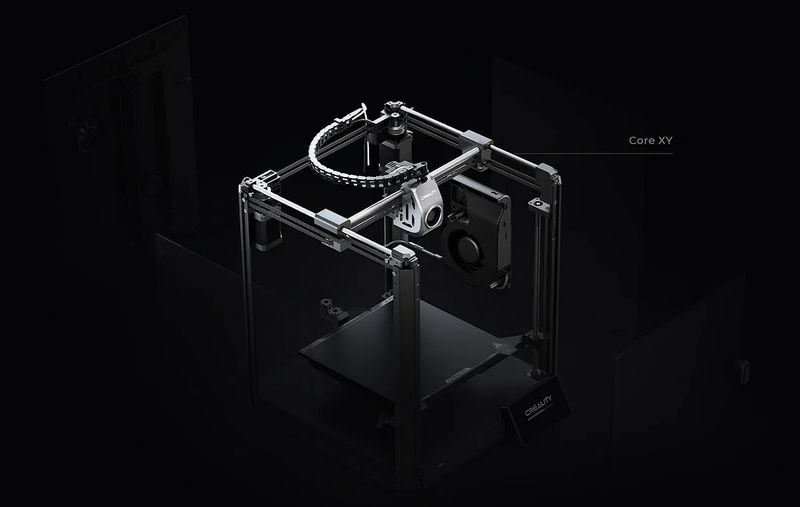

K1 Max combines the nimble Core XY with a 190g
lightweight printhead for less motion inertia. Agile and swift.
MAX. 32MM^3/S FLOW

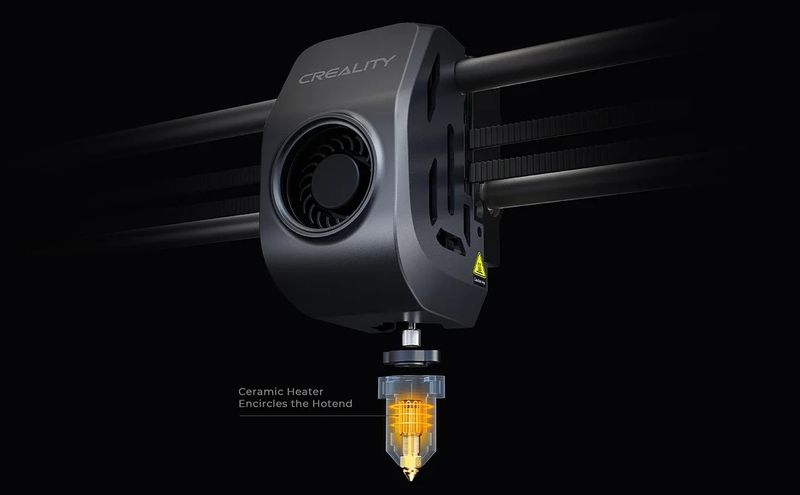

New ceramic heater, encircling the entire
hot end. It heats to 200 degrees Celsius in 40 seconds and melts the filament
instantly. Dual-gear direct extruder, delivering 50N strong extrusion force.
Hotend with a titanium alloy heartbreak and a copper alloy nozzle, working with
flying colors in up to 300 degrees Celsius.
MODEL COOLING BY DUAL FANS
A large fan on the printhead with air ducts
cools the model directly. An 18W auxiliary fan in the build chamber enhances
the cooling effect, too.
MAX CAPACITY, EFFICIENT USE OF
SPACE
K1 Max boasts a 300x300x300mm large build
volume, great for rapid prototyping or design verification. It also offers a
high build volume to printer size ratio of 25.5%. K1 Max is the most
size-efficient FDM 3D printer in its class
AI LIDAR TAKES CARE OF THE FIRST
LAYER
Still, worry about the first layer? Just
leave it all to the AI LiDAR of K1 Max. The 1 micro-m resolution LiDAR will scan the
first layer on its own. It will pause printing and tell you immediately if
something goes wrong.
K1 Max Upgrades:
1. Print Size:
The K1 offers a print size of 220 x 220 x 250mm,
which is suitable for a wide range of projects. if you have specific
requirements for larger prints, the K1 Max with its expanded print size of 300
x 300 x 300mm is an excellent choice.
2. Upgraded to Glass Top Cover:
One notable upgrade in the K1 Max is the
replacement of the PC top cover with a glass top cover. It offers better
visibility during the printing process, allowing you to monitor your prints
with ease. Additionally, it improves heat distribution and ensures more
consistent temperature control within the printer, resulting in improved print
quality and reliability.
3. Internal Placement of
Filament Runout Sensor:
4. AI Laser Radar and Camera
Included as Standard:
K1 Max comes equipped with AI laser radar
and a built-in camera, providing advanced features and functionalities.
5. Carbon Filter Included:
It helps to minimize odors and reduce the
release of volatile organic compounds (VOCs) during the printing process,
ensuring a healthier and more pleasant working atmosphere.
6. Ethernet Connectivity
Supported:
K1 Max features Ethernet connectivity,
allowing you to connect the printer to your local network via a network cable.
7. Upgraded hardened steel
nozzles:
It allows you to print with various
reinforced and engineering materials over an extended period. These upgraded
nozzles ensure consistent and reliable extrusion, even with abrasive filaments,
expanding the range of materials you can work with and unlocking new
possibilities for your projects.

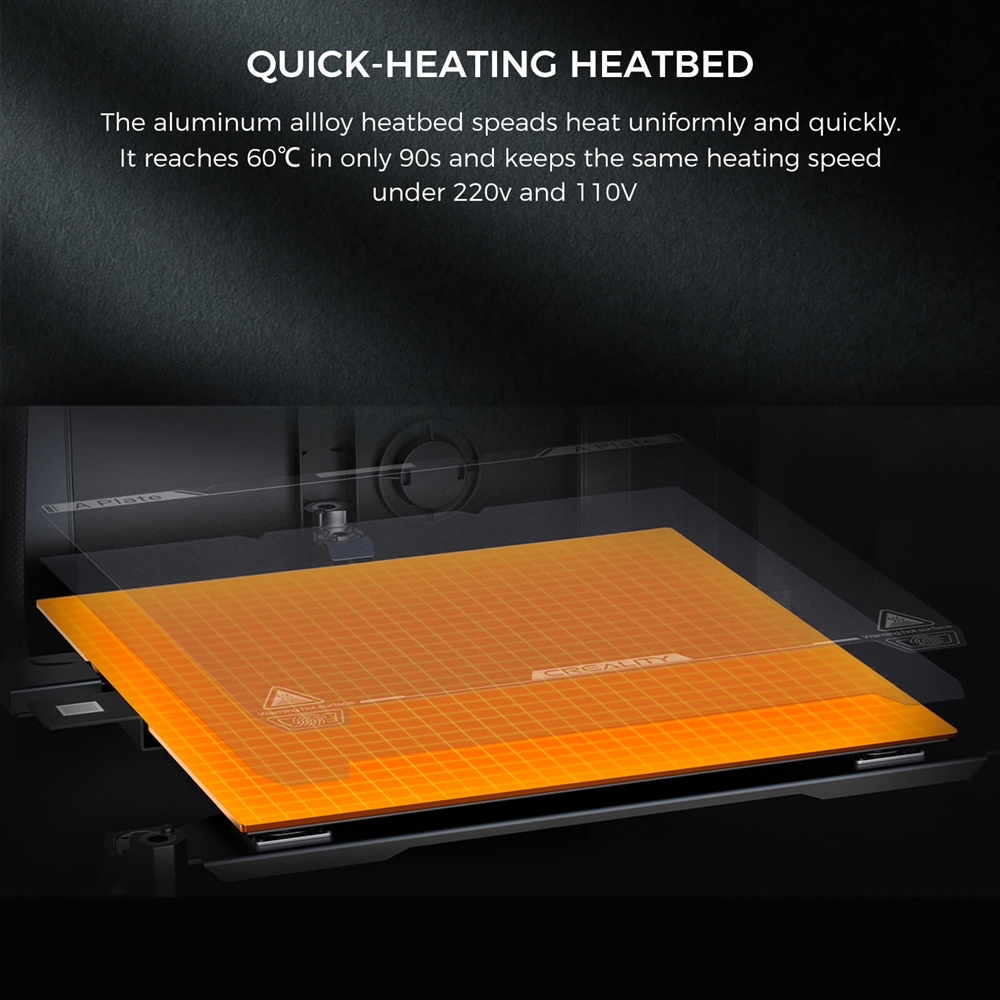

8. Power Supply and Bed Heating:
The K1 utilizes a toggle
switch power supply and a DC heated bed, providing reliable and stable power to
the printer. K1 Max features a wide-voltage power supply and an 800W AC heated
bed. The wide-voltage power supply ensures compatibility with different power
systems, making the printer suitable for use in various regions. The 800W AC
heated bed offers rapid and efficient heating, reducing the waiting time before
printing and enabling faster project completion.
