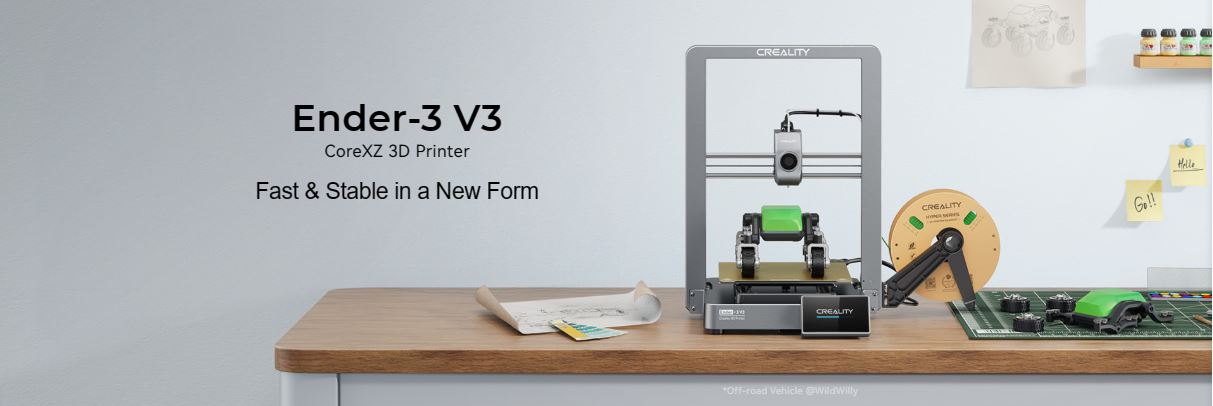

ENDER-3 V3 3D Printer
Creality has released the new Ender-3 V3, a fast printing 3D Printer with a sturdy design that makes high quality 3D prints. Also, it is lightweight (17 pounds) and quite compact (19x14x14 inch), taking up minimal space. Build volume is 220x220x240mm.
Ender-3 V3 is a CoreXZ bedslinger. Designs will print at a maximum speed of 600 mm/s and maximum acceleration of 20000 mm/s^2. Ender-3 V3 can print 12 times faster than a regular i3-style 3D printer, a new benchmark for bedslingers. A Benchi prints with Creality Hyper-PLA in 13 minutes.

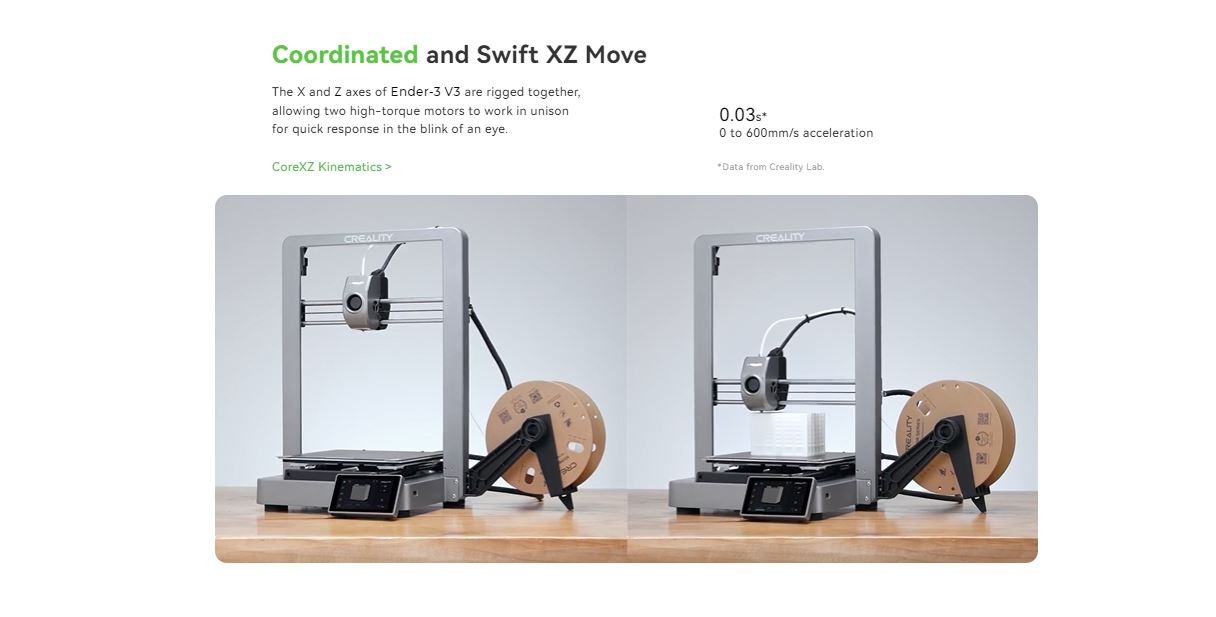

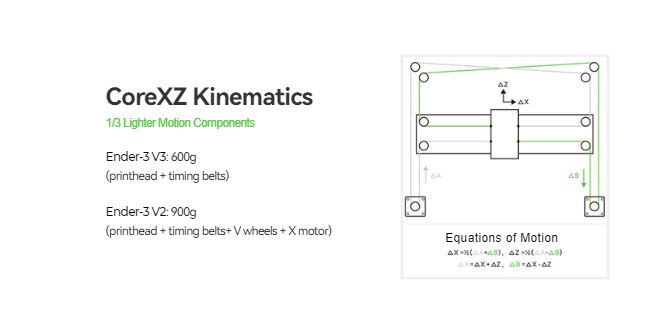

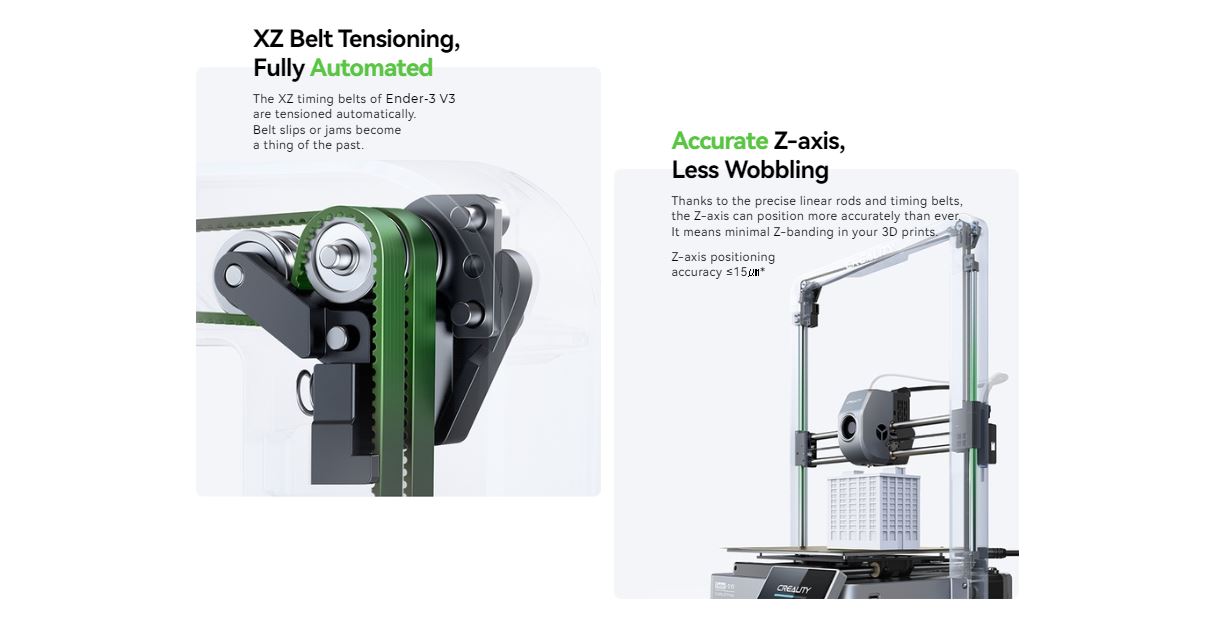

The CoreXZ design allows for 2 high torque motors to work in unison for quick movements. The XZ belt tensioning is automatic so forget about belt slips or jams from happening!

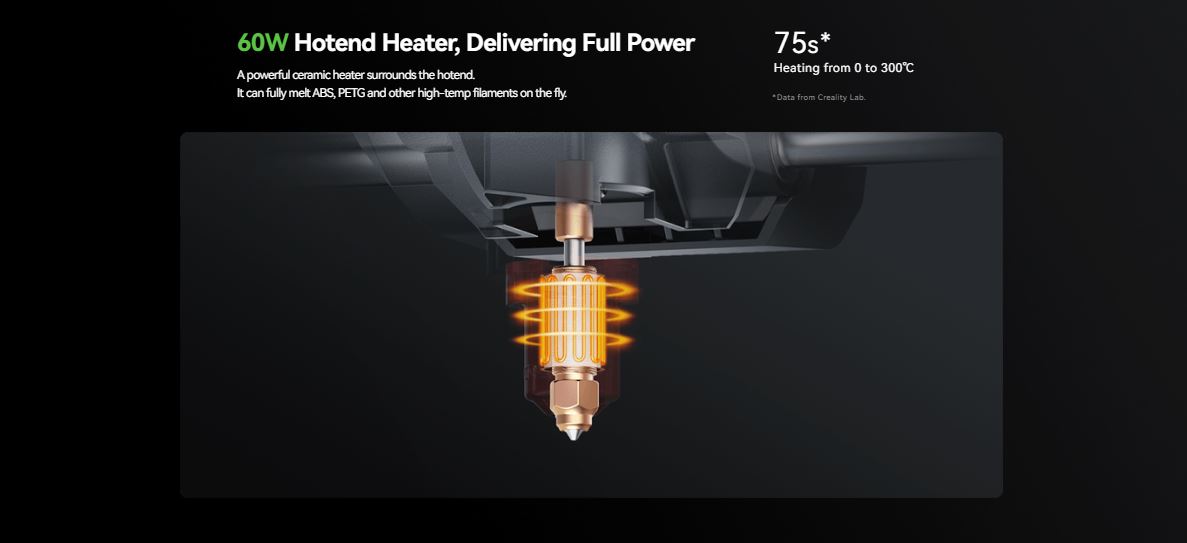

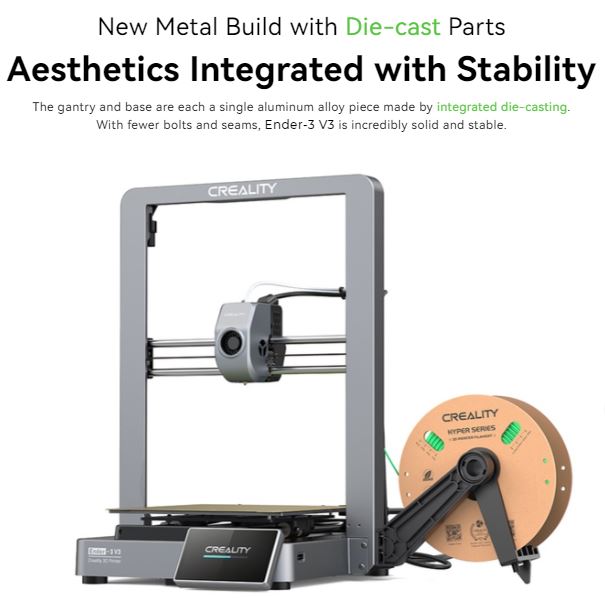

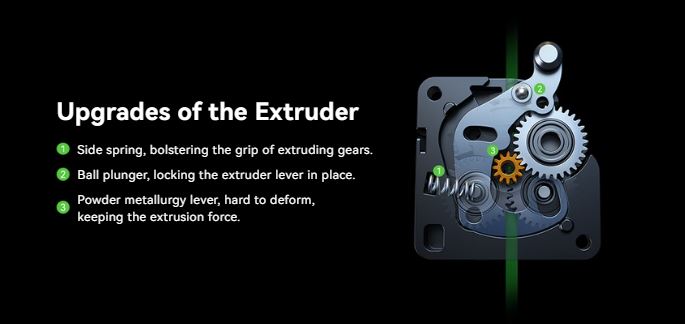

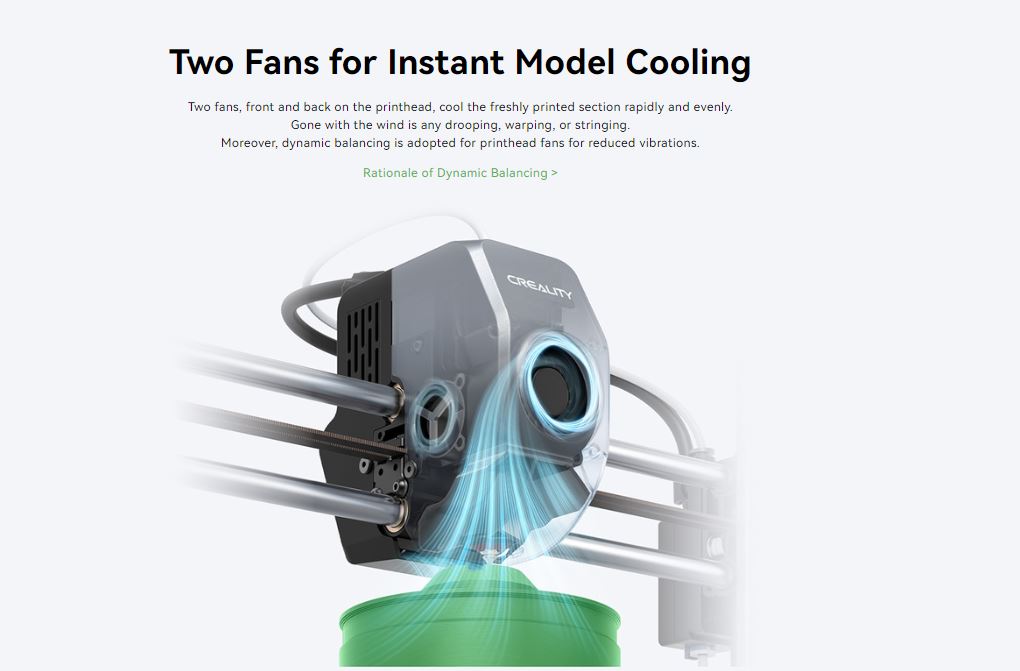

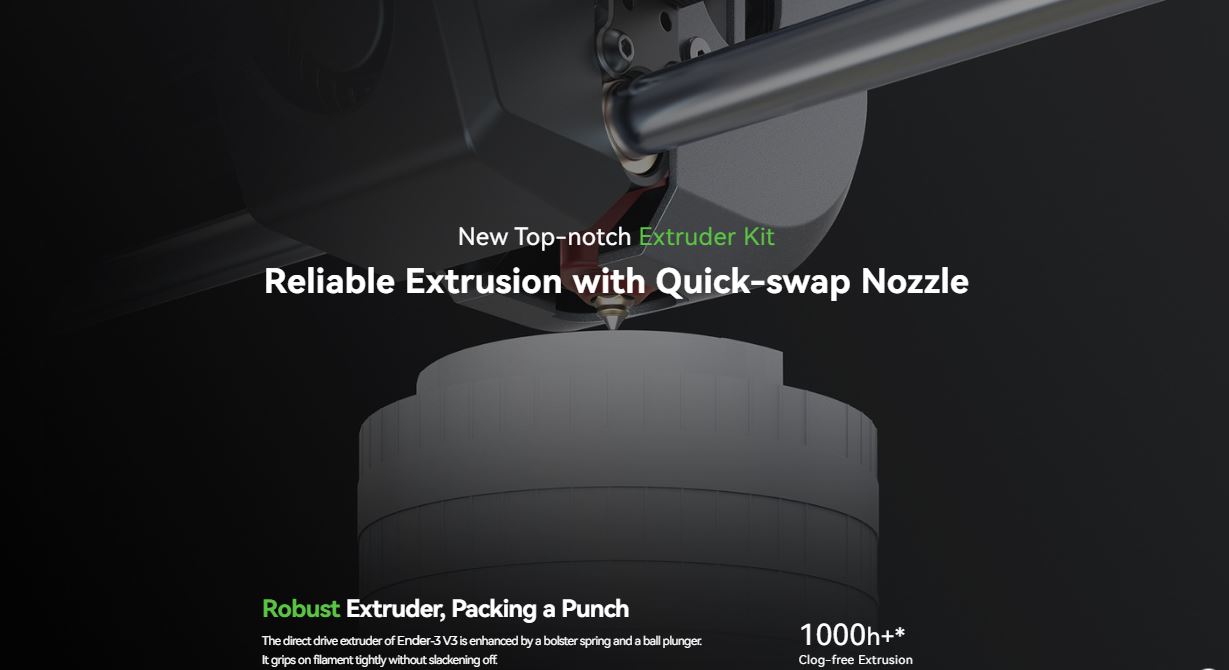

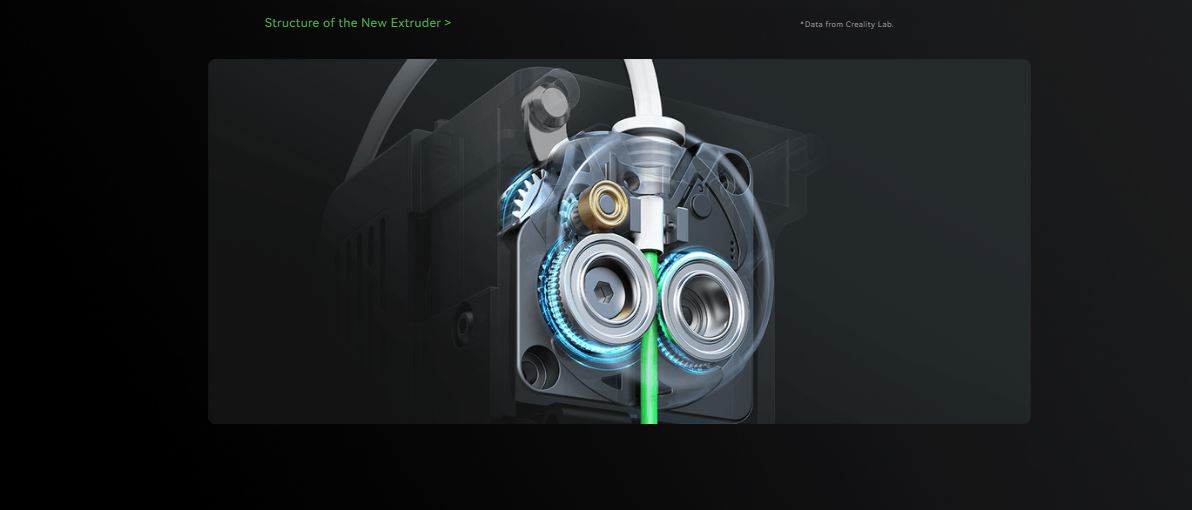

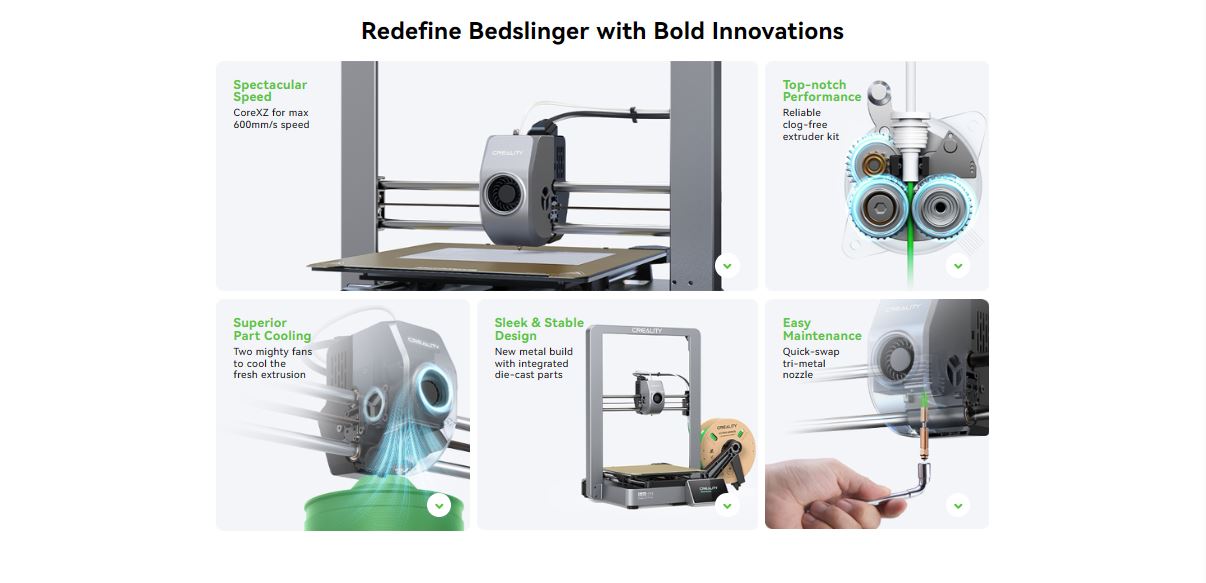

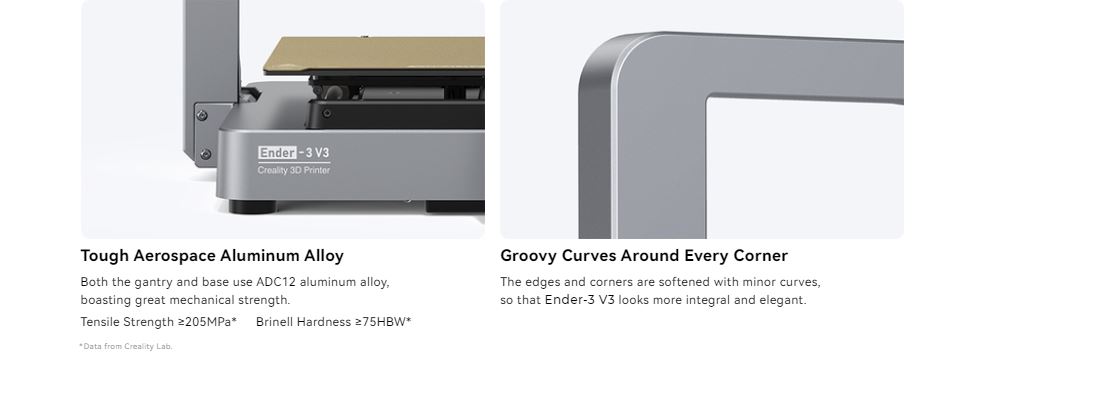

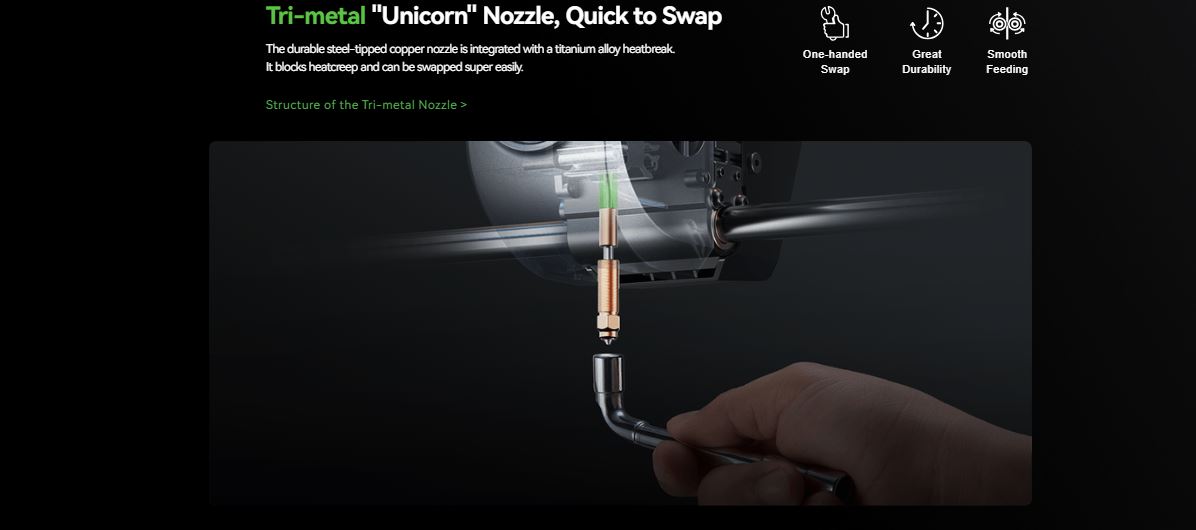

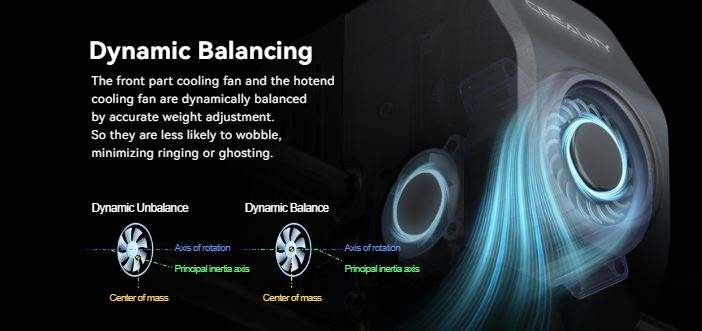

The Ender-3 V3 is made of a single diecast all aluminum metal frame and base. Without a lead screw, lead screw maintenance has been eliminated. Thanks to precise linear rods and timing belts, the Z-axis can position more accurately minimizing the occurrence of Z-banding. The printhead rests on lightweight 10 mm linear rods. The direct drive extruder of the Ender-3 V3 is enhanced by a bolster spring and a ball plunger. It tightly grips filament. A powerful ceramic heater surrounds the hotend and can fully melt ABS, PETG and other high temperature filament. Nozzle heats from 0 to 300 degrees Celsius. There are 2 cooling fans, one on the front and one on the back of the printhead. No more drooping, warping or stringing of prints. The hot end has a quick swap tri-metal "unicorn" nozzle. The durable steel-tipped copper nozzle is integrated with a titanium alloy heatbreak. Heatbreak blocks heatcreep and can be swapped easily. There are 2 stepper motors, one on the left and other on the right at the base of the machine to power the Z and X axis motion.

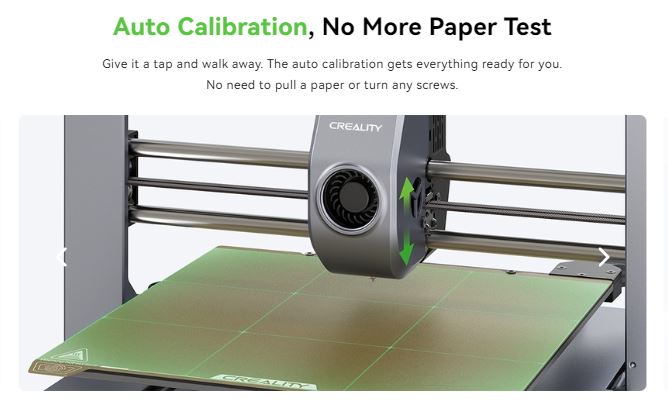

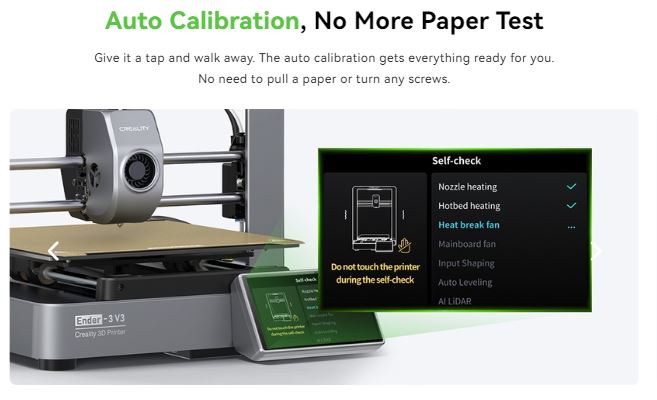

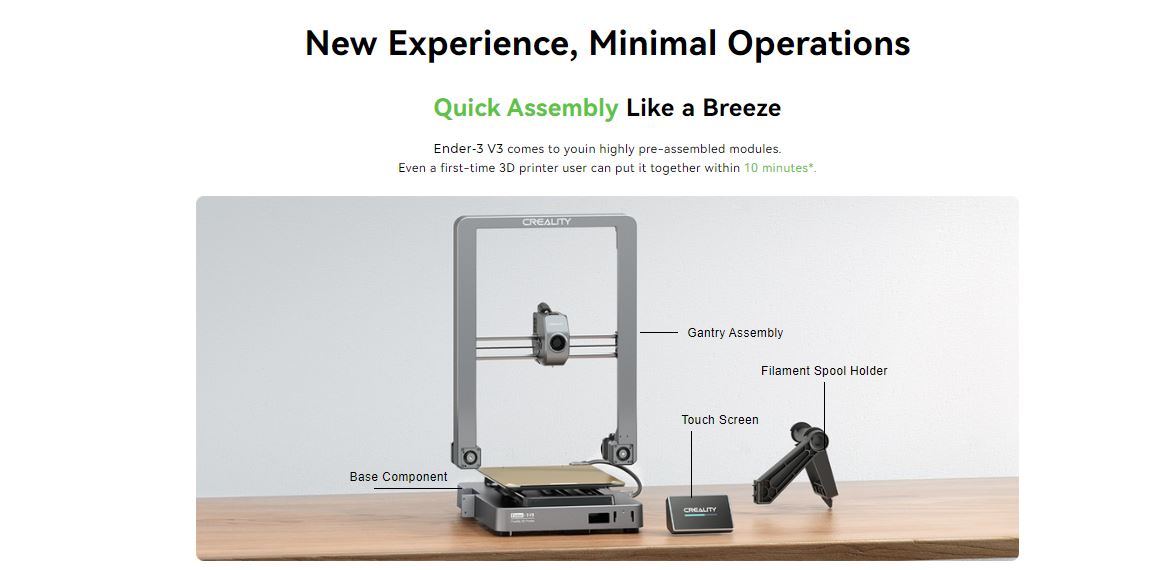

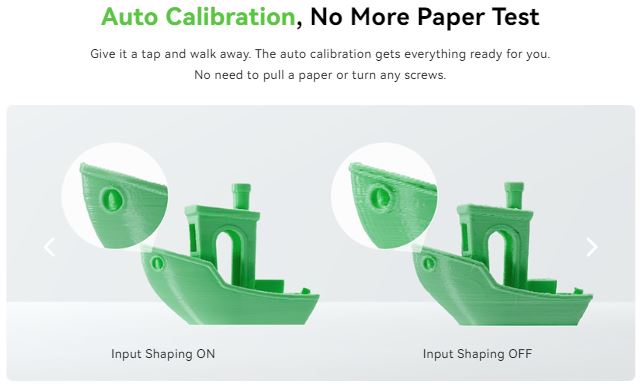

Assembly takes 10 minutes, as the Ender-3 V3 arrives in highly pre-assembled modules. To auto calibrate, just give it a tap and walk away, no paper needed or screw adjustments.

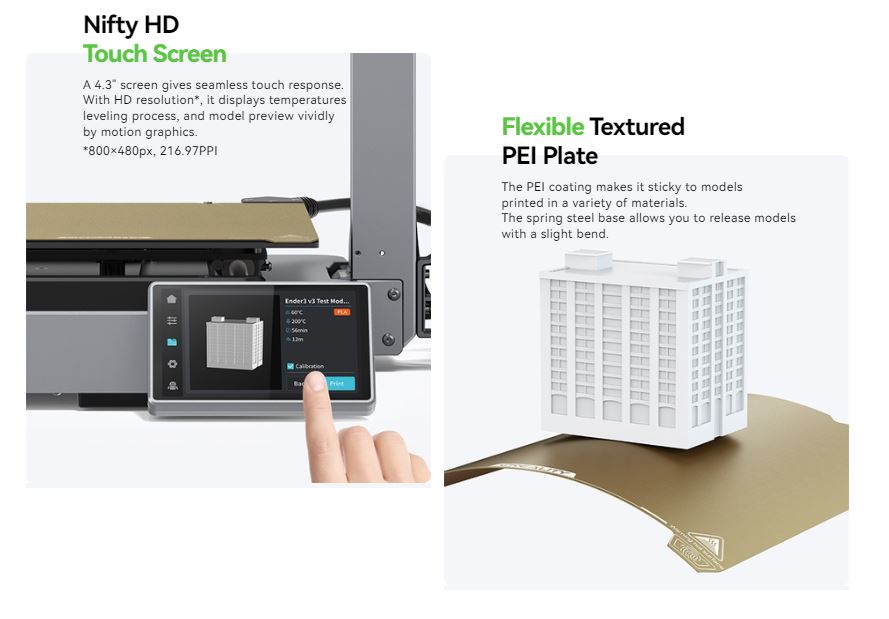

HD Touchscreen is 4.3" giving seamless touch response. It has HD resolution.
The PEI coated plate makes it sticky to models printed in a variety of materials. The spring steel base allows you to release models with a slight bend.

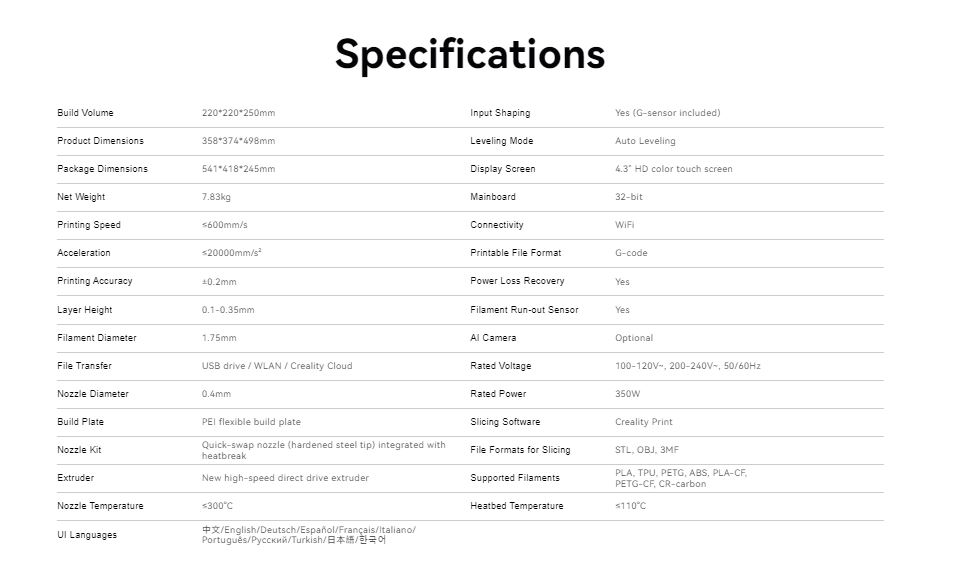

The Ender-3 V3 has input shaping, auto-leveling, WiFi connectivity, power loss recovery, runout sensor, option to add an AI camera, USB/WLAN/Creality Cloud file transfer, new high-speed direct drive extruder, maximum nozzle temperature of 300 degrees Celsius and maximum heatbed temperature of 110 degrees Celsius. Compatible file formats for slicing are STL, OBJ and 3MF.
