CR-M4
Easy to assemble: The CR-M4
is billed as an easy-to-assemble 3D printer
CR-M4: 450 x 450 x 470mm
Large Size | Dual Y-axis Linear Rails, Sprite Direct Drive 3D Printer
NEW UPGRADED ON CR-M4:
- Precise
double Y-axis linear rails
- All-metal
"Sprite" Direct Dual-Gear Extruder & High-flow hot end
- High compatibility
with filaments
- Automatic 25-point
levelling and Z offset
- Special PC coating for
good adhesion;
- Industrial 800-watt
power supply
- Remote monitoring and
remote access. Print
Farm and multi-printer control
Other features:
Recovery from
power failure
Filament runout sensor
Practical cable chain
against cable tangles
Quiet motherboard (50 dB)
4020 fan for model cooling
Flexible PC spring steel
build surface and fast heating bed
User-friendly touch screen

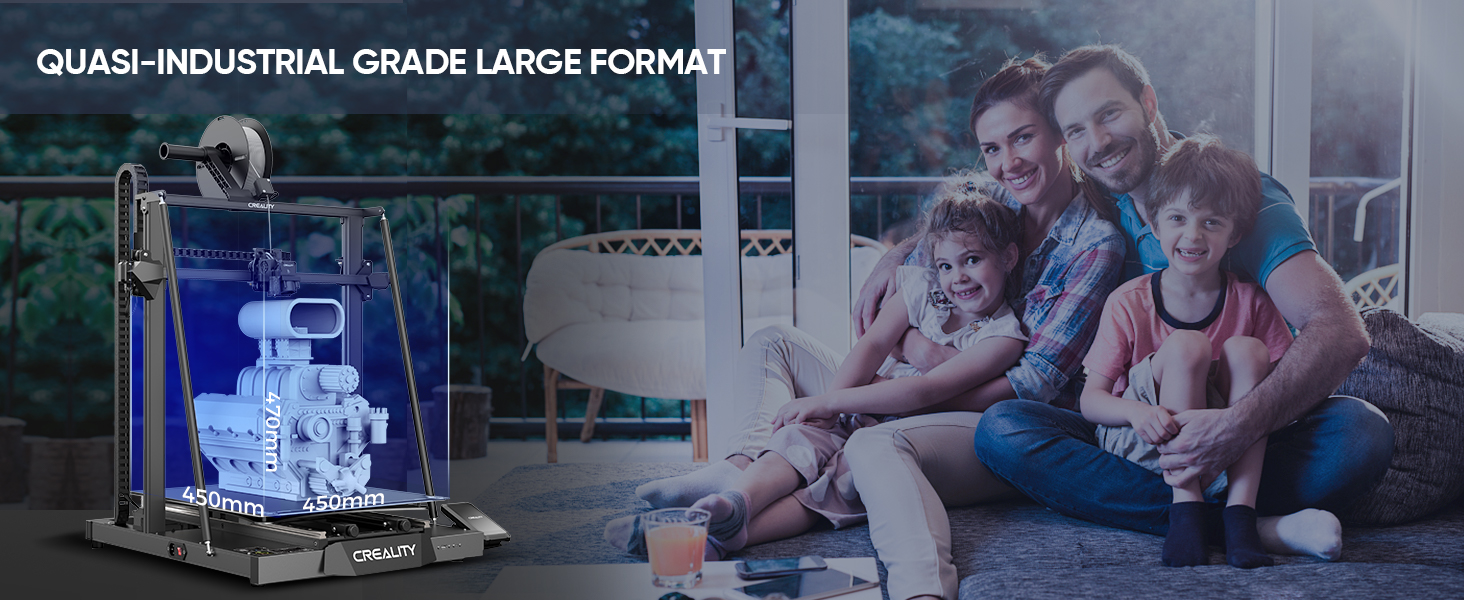

QUASI-INDUSTRIAL LARGE FORMAT 450 x 450 x 470mm
Creality CRM4
3d printer allows for the creation of bigger and more complex models with fewer
or no post-processing requirements, which can save a lot of time and effort for
users. The ability to batch-print multiple parts in one go is also a
significant advantage, as it can increase efficiency and productivity, making
it ideal for prototyping and small production runs. Combined with a 42-60 Y
Axis stepper motor, the CR-M4 can handle a whopping 30kg print on its build plate.

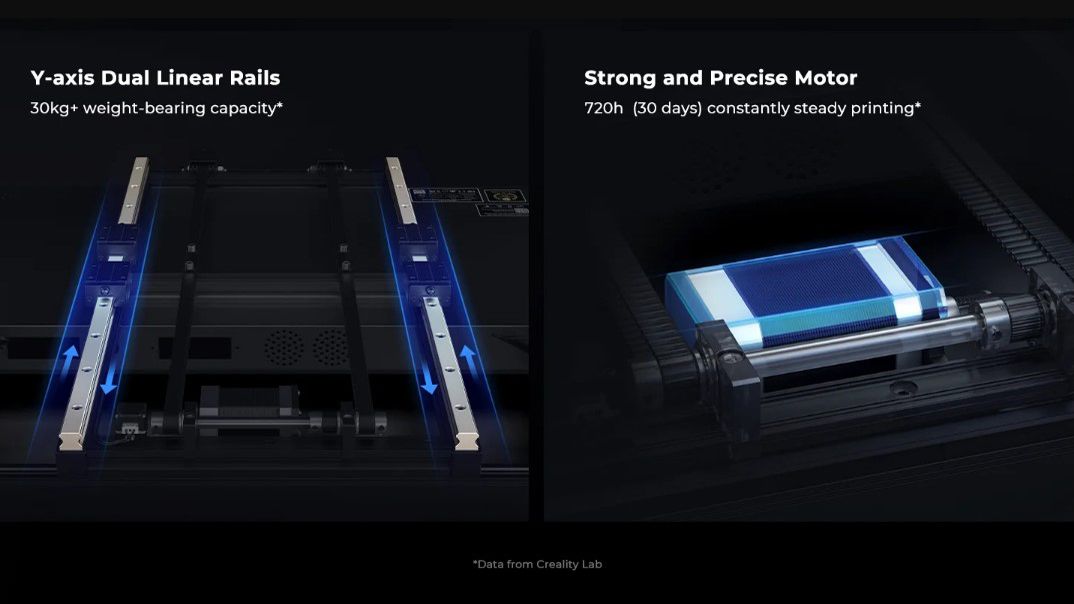

The double linear rail of the Y-axis, with a
42-60 Y Axis stepper motor
The printer
features CNC-machined linear rails made of bearing steel. The rails are
wear-resistant and can withstand heavy loads. The linear rails on the Y axis
help move the heavy bed, has a load capacity of 30 kg; The powerful motor
ensures 720 h or 30 days of constant pressure.

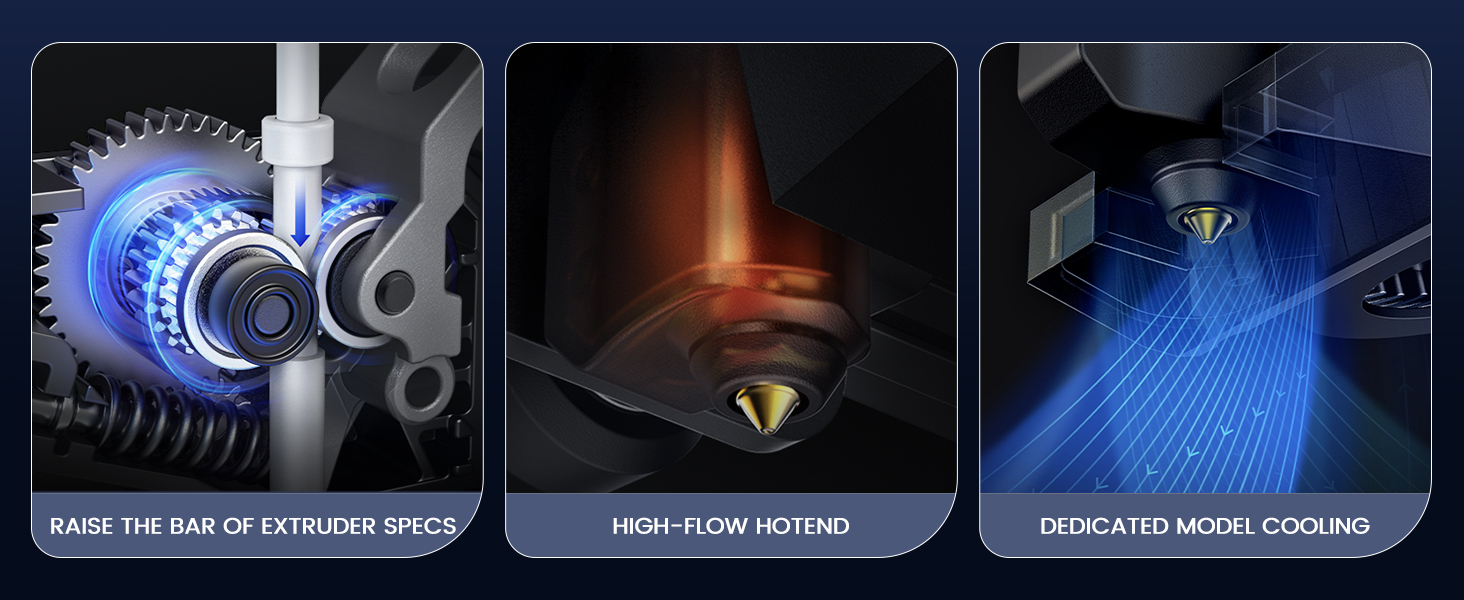

All-metal "Sprite" Direct Dual-Gear Extruder and High-Flow Hot End and 4020 fan for model cooling
The all-metal "Sprite" direct dual-gear extruder developed by Creality CR-M4 for home use is a dual-gear
design that allows for smooth filament feeding and discharging with a thrust of
up to 80 N. The extruder is ideal for printing flexible filaments such as TPU.
The hot end has been optimized with a high-flow nozzle and a 50 watt heating cartridge.
This completely melts filament at 300 degrees Celsius, even with a filament
with very high-temperature resistance, it guarantees a fluid feed. The
high-flow nozzle is interchangeable with a 0.6-0.8 mm nozzle. A special independent
4020 fan ensures that freshly printed layers, parts and components solidify
faster and do not warp.

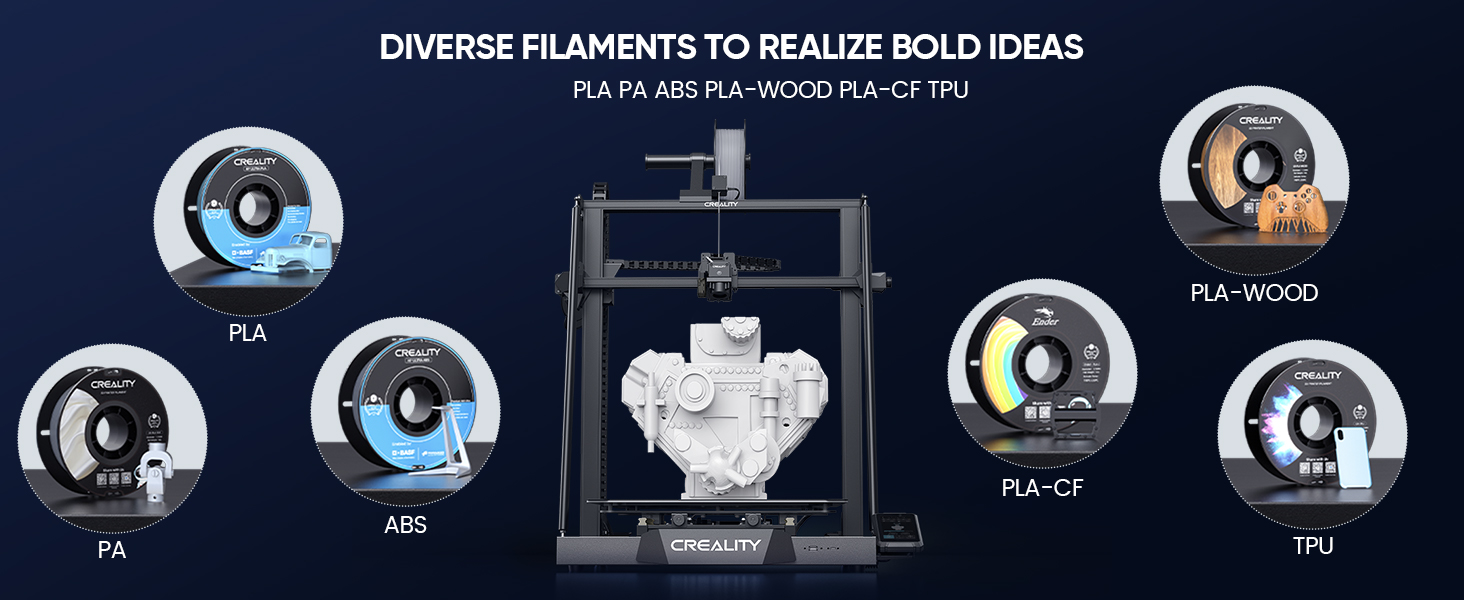

High Compatibility with Filaments
The printer is compatible with a variety of materials including PLA, PA (nylon), heat-resistant ABS, PLA-Wood, PLA-CF, Flexible TPU and PETG.

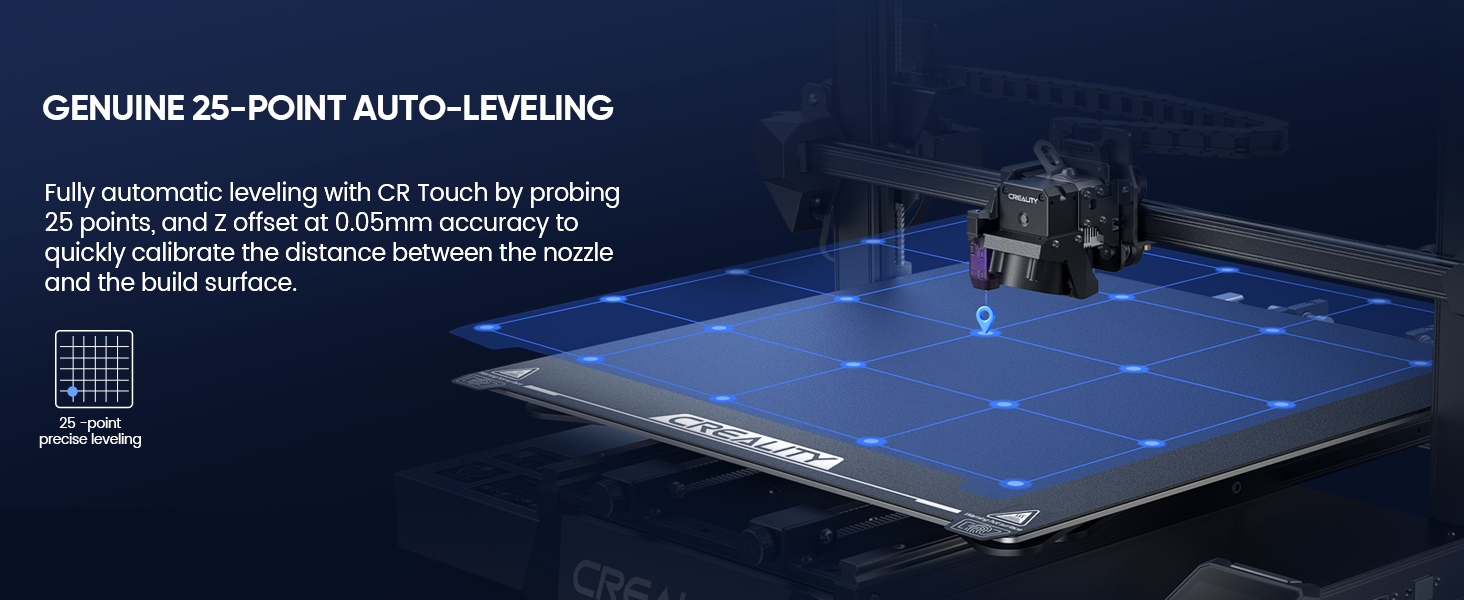

Automatic 25 Point Levelling and Z Offset
Fully automatic leveling with CR Touch by probing 25 points for the largest auto-levling 3D Printer, and Z Offset at 0.05 mm accuracy to quickly calibrate the distance between the nozzel and the build surface.

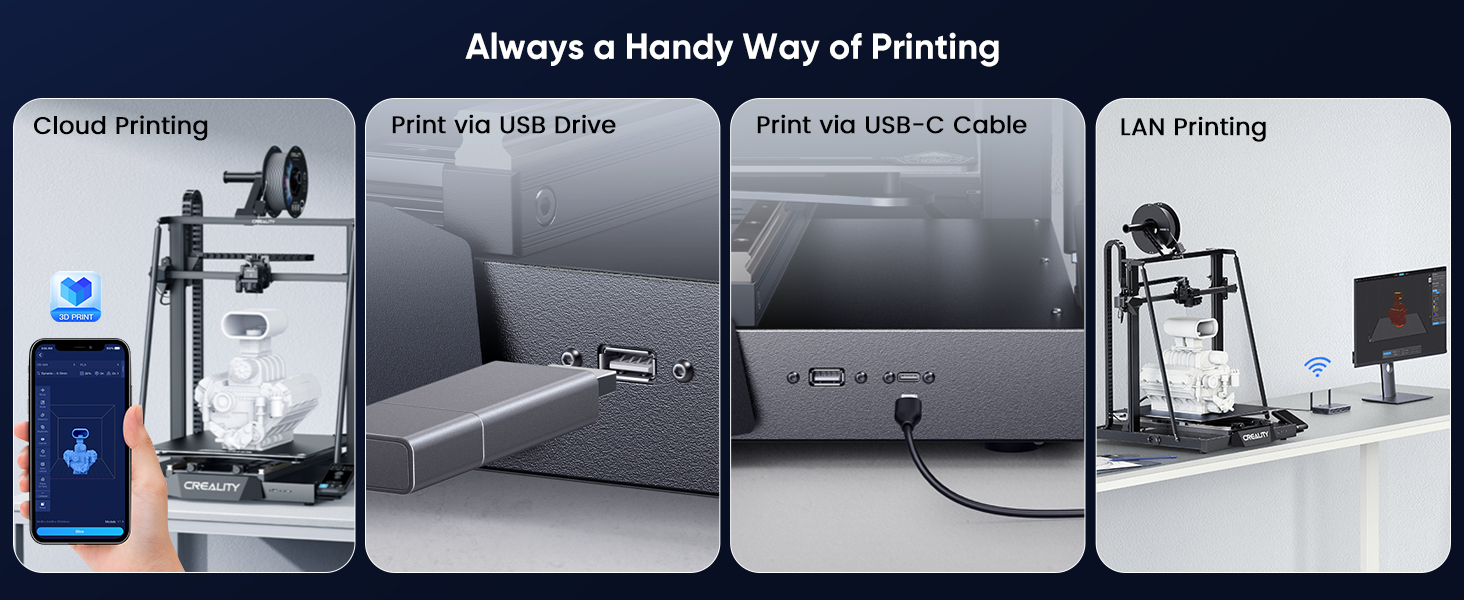

Easy to Print: Multiple Printing Options
The new CRM4 Creality 3D Printer gives a variety of printing options with Cloud Printing capabilities through Creality Cloud Software as well as a USB-A drive, USB-C cable, RJ45 LAN and WiFi connections.
